F150 Blend Door Actuator Reset: Fix Your HVAC in Easy Steps

Imagine setting off on a chilly morning, turning on your heat, and instead of a comforting warmth, you’re greeted by a mysterious clicking noise from under the dash. Or perhaps, during a summer drive, one side of your cabin remains stubbornly hot while the other is refreshingly cool. For many F-150 owners, these aren’t just scenarios but real frustrations that point to a common culprit: the blend door actuator. It’s a small component with a big role in your comfort on the road.

The blend door actuator reset process might sound technical, but it’s a crucial step towards ensuring your vehicle’s heating and cooling system operates as it should. With thousands of satisfied customers finding relief after addressing issues with their blend door actuators, it’s clear that this is more than just a piece of maintenance—it’s a key to reclaiming your comfort and confidence in your vehicle. So, let’s dive into the heart of the matter and explore how a simple reset can make a big difference in your driving experience.

Key Takeaways

• Identify Blend Door Actuator Issues: Symptoms of a faulty blend door actuator include inconsistent airflow temperature, unusual noises behind the dashboard, and an inability to change airflow direction. Recognizing these signs early can prevent discomfort and ensure the HVAC system works properly.
• Gather Necessary Tools for Reset: Before attempting an f150 blend door actuator reset, prepare with essential tools such as a screwdriver set, socket wrench set, Torx bit set, trim removal tool, electrical cleaner, and a quality replacement actuator if needed.
• Follow Standard Reset Procedure: The reset process involves locating and disconnecting the actuator, removing it, pressing the reset switch if available, and reinstalling the actuator followed by a calibration cycle. This can alleviate many common blend door actuator issues.
• Alternative Fuse Box Reset Method: As a simpler alternative, removing and reinstalling the specified fuse in the fuse box can reset the system. This method is particularly useful for quick troubleshooting.
• Replacement May Be Necessary: In cases where a reset does not resolve the issue, replacing the blend door actuator is recommended. This involves removing the old actuator, installing a new one, and ensuring it’s calibrated correctly for optimal function.
• Professional Help Might Be Required: If DIY attempts do not fix the issue, or if there’s discomfort in performing these steps, seeking professional help is advisable to ensure the HVAC system’s integrity and avoid further complications.

Signs of a Faulty Blend Door Actuator

Identifying issues with the blend door actuator early can save time and ensure the comfort features of the F-150 operate correctly. Let’s explore the signals that indicate a faulty blend door actuator.

Inconsistent Airflow Temperature

One of the first signs of a problem is inconsistent airflow temperature. When the blend door actuator malfunctions, drivers might notice the temperature of the air coming through the HVAC system does not match the settings on the climate control. For instance, setting the thermostat for warm air may still result in cold air blowing through the vents, or vice versa. This inconsistency can be particularly noticeable during extreme weather conditions, making the driving experience uncomfortable.

Unusual Noises Behind the Dashboard

Another clear indicator of a faulty blend door actuator is unusual noises coming from behind the dashboard. These sounds can range from clicking, ticking, to even thumping noises when the ignition is turned on or while adjusting the temperature settings. The noise emanates from the actuator’s gears struggling to open or close the blend door, a task they perform to regulate airflow and temperature distribution within the vehicle.

Inability to Change Airflow Direction

A properly functioning blend door actuator allows the driver to direct airflow from the vehicle’s HVAC system to various vents, such as the windshield for defrosting, the dashboard vents for face-level air, or the floor. A clear sign of actuator issues is the inability to change the direction of the airflow. The air may be stuck coming out of one set of vents regardless of the selected setting, indicating the blend door is not moving as directed by the actuator.

By recognizing these signs, owners can address blend door actuator problems early. For F-150 owners, understanding the process of an f150 blend door actuator reset is beneficial for resolving some of these issues without the need for immediate professional intervention.

Tools and Materials Needed for the Reset

Before starting the f150 blend door actuator reset process, ensuring you have the right tools and materials is crucial for a smooth operation. This preparation prevents delays and ensures the reset can be completed efficiently.

Tools List

• Screwdriver Set: A comprehensive set, both Phillips and flat-head, accommodates various screw types encountered.
• Socket Wrench Set: Necessary for removing bolts and nuts, especially in tight spaces.
• Torx Bit Set: Some models use Torx screws for the actuator and other components.
• Trim Removal Tool: Helps to safely remove dashboard panels without causing damage.
• Flashlight: Provides visibility in dark, confined areas behind the dashboard.

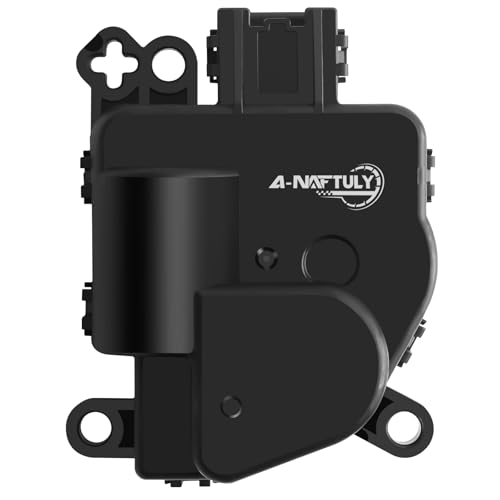

• Quality Blend Door Actuator: Ensure it’s compatible with your model of F150 to guarantee seamless operation.
• Electrical Cleaner: Useful for cleaning connections and ensuring a good electrical contact.
• Lubricant: A non-greasy, plastic-safe lubricant can be applied to moving parts for smoother operation.
• Zip Ties: Handy for securing wires out of the way during the reset process.

Gathering these tools and materials beforehand facilitates a stress-free f150 blend door actuator reset. This preparation allows us to focus on the reset process itself, ensuring everything runs as smoothly as possible.

Standard Reset Procedure for F150 Blend Door Actuator

Embarking on the F150 blend door actuator reset ensures the heating and cooling systems operate smoothly, enhancing comfort in your vehicle. Let’s dive into the straightforward steps and tips for a successful reset.

Step-by-Step Guide

1. Prepare Your Workspace: Ensure the vehicle is parked on a level surface and the ignition is off. Gather all necessary tools and materials outlined earlier to keep them within reach.
2. Locate the Blend Door Actuator: Open the passenger side under-dash panel using the trim removal tool. Use the flashlight to locate the blend door actuator, typically found near the HVAC unit.
3. Disconnect the Actuator: Carefully disconnect the electrical connector attached to the blend door actuator. Use the electrical cleaner to clean the connector, removing any dust or debris.
4. Remove the Actuator: Unscrew the mounting screws using the appropriate screwdriver or socket wrench. Carefully remove the actuator from its position.
5. Reset the Actuator: Press and hold the reset switch on the actuator if available. If your model does not have an external reset switch, proceed to the next step.
6. Reinstall the Actuator: Align the actuator to its mounting position, ensuring the gear aligns with the blend door lever. Secure it with the mounting screws and reconnect the electrical connector.
7. Calibration Cycle: Turn the ignition to the ON position without starting the engine. Wait for 30 seconds to allow the HVAC system to initiate the calibration cycle automatically. The calibration process takes about 30 seconds to 1 minute.
8. Test the System: After the calibration cycle completes, start the engine, and adjust the temperature settings to verify the blend door actuator operates as intended.

• Perform a Visual Inspection: Before resetting, inspect the blend door actuator and surrounding components for signs of physical damage or obstruction.
• Be Gentle: When removing and reinstalling components, apply gentle pressure to prevent breaking any plastic parts.
• Patience Is Key: Allow the calibration cycle to complete fully. Rushing through the process can lead to improper calibration.
• Double-Check Connections: Ensure all electrical connectors are securely reattached after the reset to avoid any loose connections.

Following these detailed steps and tips ensures a smooth F150 blend door actuator reset process, resolving heating and cooling inconsistencies and restoring optimal functionality to your vehicle’s comfort systems.

Alternate Method: Resetting via Fuse Box

After covering the standard procedure for an F150 blend door actuator reset, let’s explore an alternate, simpler method that involves the vehicle’s fuse box.

Locating the Fuse Box

To start, locate the fuse box in your F150. In most models, you’ll find it on the passenger side. It’s usually located beneath the glove box or on the side panel next to the passenger’s footwell. You might need to remove a panel or cover to gain access, but typically it’s quite straightforward.

Identifying the Correct Fuse

Once you have access to the fuse box, your next step is identifying the correct fuse for the blend door actuator reset. For most F150 models, particularly those manufactured after 2011, you’re looking for fuse 46. It’s crucial to consult your vehicle’s manual to confirm as models or years may have variations. The correct fuse is integral to ensuring the reset process works correctly without affecting other vehicle systems.

Resetting the System

With the correct fuse identified, follow these steps to reset your blend door actuator:

1. Carefully remove fuse 46 from the fuse box. Using a fuse puller or a pair of needle-nose pliers can make this task easier.
2. Wait for at least one minute with the fuse removed. This pause allows the system to register the disruption and reset.
3. Reinstall fuse 46 into its slot in the fuse box. Ensure it’s securely in place.
4. Start your vehicle and turn the ignition to the ON position, but do not start the engine. Wait for at least 30 seconds. This waiting period is essential for the HVAC system to recalibrate and for the actuators to go through their calibration cycle.
5. Test the system by adjusting the air flow and temperature settings to ensure the reset was successful and the blend door actuator responds correctly.

This method offers a simple yet effective way to reset your F150 blend door actuator. It’s a valuable technique to know, especially if you’re experiencing issues with your vehicle’s HVAC system and prefer a quick troubleshooting step before diving into more complex repairs.

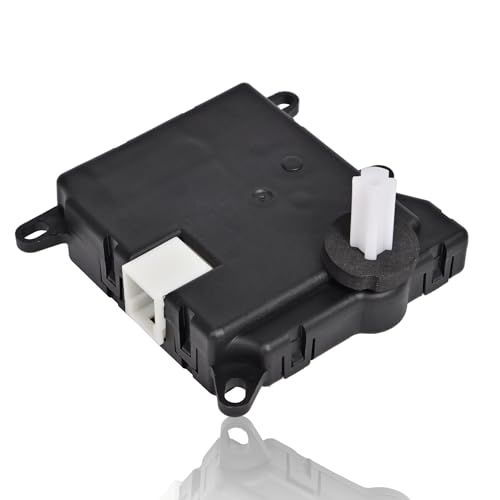

Replacing the F150 Blend Door Actuator

After exploring the simpler method of an F150 blend door actuator reset, some cases may require replacing the actuator itself. This ensures a long-term fix to heating and cooling system issues.

Preparing the Workspace

Beginning with a well-prepared workspace enhances safety and efficiency. First, ensure the F150 engine is off and the keys are removed from the ignition. Gather all necessary tools, including screwdrivers, a socket wrench set, and possibly a trim removal tool. It helps to have a clean, organized space to keep track of removed parts and fasteners.

Removing the Old Actuator

Removing the old actuator involves a few precise steps. Locate the actuator, typically behind the glove box or under the dashboard, depending on the F150 model year. Carefully detach the glove box or dashboard trim to access the actuator. Disconnect the electrical connector by pressing down on the tab and pulling it away. Unscrew the mounting screws with a socket wrench or screwdriver. Gently remove the actuator, paying attention to its orientation for a smoother installation of the new one.

Installing the New Actuator

Installing the new actuator mirrors the removal process in reverse. Align the new actuator correctly, ensuring its orientation matches the position of the one just removed. Secure the actuator in place with the previously removed screws, being careful not to overtighten and damage the casing. Reconnect the electrical connector until it clicks into place. Before reassembling the glove box or dashboard trim, test the new actuator by turning on the ignition and adjusting the temperature controls. Listen for the absence of clicking noises and confirm that airflow is being properly directed through the HVAC system. Once functionality is confirmed, reassemble any removed components to complete the installation.

Calibration of the Blend Door Actuator

After discussing the steps for a standard reset and replacement of the F150 blend door actuator, it’s crucial to ensure the system functions correctly by calibrating the actuator. Calibration aligns the actuator’s movement with the control commands, essential for optimal performance.

Importance of Calibration

Calibration of the blend door actuator is paramount in restoring the full functionality of the F150’s HVAC system. Without calibration, even a correctly installed actuator may fail to regulate air temperature and flow direction effectively, leading to discomfort and dissatisfaction. Calibration ensures the actuator aligns precisely with the HVAC system’s demands, allowing for accurate temperature control and distribution of air inside the vehicle.

How to Calibrate

To calibrate the blend door actuator on an F150, follow these steps carefully:

1. Turn off the ignition to ensure the vehicle’s electrical system is inactive. This step prevents any accidental damage to the newly installed actuator or the vehicle’s electrical system.
2. Locate the Body Control Module (BCM) fuse, often labeled as fuse 46 in most F150 models post-2011. The vehicle’s manual provides the exact fuse location and specification.
3. Remove the BCM fuse and wait for at least one minute. This action helps to reset the system, clearing any previous settings that could interfere with calibration.
4. Reinstall the BCM fuse firmly to restore power to the module.
5. Turn the ignition switch to the ON position, but do not start the engine. This step is critical for powering the HVAC system without engaging the vehicle’s full electrical load.
6. Wait for approximately 30 seconds. During this period, the HVAC system will automatically recognize the reconnected actuator and begin the calibration process. It adjusts the actuator’s range of motion to match the system’s control commands accurately.
7. Verify correct operation of the mode door actuator by adjusting the temperature and airflow direction. Listen for any unusual noises and ensure the air distributes as selected, indicating a successful calibration.

Executing these steps ensures the F150 blend door actuator resets and calibrates correctly, maintaining the vehicle’s interior comfort by regulating temperature and airflow with precision.

Troubleshooting Common Issues

Navigating through the complexities of an F-150 blend door actuator reset can often lead to encountering a few hitches along the way. In this segment, we turn our attention to deciphering common issues, pinpointing reasons behind recurring noises, and understanding when it becomes critical to involve a professional.

Symptoms of Improper Calibration

Improper calibration of the blend door actuator in your F-150 can manifest in several distinct symptoms, signaling that the actuator is not functioning as it should. One prevalent sign includes the HVAC system failing to produce the desired air temperature, regardless of the settings. If the heater only blows cold air, or the air conditioner fails to cool the cabin, it suggests that the blend door actuator requires recalibration. Another indicator is incorrect air delivery or distribution, where airflow is directed to the wrong vents, hindering efficient cabin temperature management. These symptoms necessitate a revisit of the calibration process, ensuring it aligns with the vehicle’s specifications.

Dealing with Persistent Noises

Persistent noises, such as clicking or popping sounds emanating from the dashboard when attempting to change the temperature or airflow direction, typically indicate a malfunction within the blend door actuator mechanism. This problem often stems from a gear within the actuator becoming stripped or misaligned. To address this, inspect the blend door actuator for physical damage. If damages are observed, replacing the actuator becomes imperative. However, if the actuator appears intact, a recalibration might resolve the issue by realigning the actuator’s operation with the blend doors.

When to Seek Professional Help

While many F-150 owners find success in resetting and recalibrating the blend door actuator on their own, certain scenarios demand the expertise of a professional. If you’ve attempted a reset and recalibration without resolving the underlying issue, or if the HVAC system exhibits erratic behavior post-reset, it’s time to consult with a qualified technician. Moreover, if you’re uncomfortable performing these tasks due to lack of experience or fear of causing further damage, professional assistance ensures the blend door actuator is correctly diagnosed and repaired. Seeking help from a professional not only saves time but also guarantees the longevity and proper functioning of your F-150’s HVAC system.

FAQs

Transitioning from the troubleshooting and recalibration guide, we often receive questions regarding the next steps in managing a blend door actuator issue. Here, we’ll address some of the most frequently asked questions to further assist you.

How Much Does It Cost to Replace a Blend Door Actuator?

The cost of replacing a blend door actuator can vary significantly depending on several factors, including the model year of your F-150 and the labor rates in your area. On average, the part itself might cost between $150 and $250, with labor costs potentially adding an additional $80 to $200 to the total expense. It’s always wise to get a few quotes from different repair shops to ensure you’re receiving a fair price for this service.

How Often Should You Recalibrate?

Recalibration frequency for your F-150’s blend door actuator largely depends on the performance and any symptoms of malfunction. There’s no set interval for recalibration, but it’s recommended to recalibrate the system whenever it shows signs of improper operation, such as inconsistent airflow or temperature control issues. Following a battery disconnect or similar vehicle maintenance that might disrupt the HVAC system’s memory, recalibration is also advised.

Is It Safe to Drive with a Blend Door Actuator Problem?

Technically, it is safe to drive your F-150 even if the blend door actuator is not functioning properly, as it does not directly affect the vehicle’s ability to operate safely. However, it may cause discomfort due to the inability to control the cabin temperature effectively, especially in extreme weather conditions. If your vehicle’s HVAC system is stuck on a setting that is either too hot or too cold, it could potentially distract you while driving, which is not ideal. In such cases, addressing the issue promptly can ensure a more comfortable and focused driving experience.

Conclusion

We’ve walked through the nitty-gritty of tackling F-150 blend door actuator problems together. From recognizing the early signs of trouble to diving into a detailed reset guide, we’ve covered the essentials to help you deal with these pesky HVAC issues. Remember, while a DIY fix can save the day, there’s no shame in calling in the pros for those stubborn problems. Keeping your F-150’s heating and cooling system in top shape not only ensures a comfortable ride but also prevents bigger headaches down the road. So here’s to smooth driving and a perfectly calibrated HVAC system in your trusty F-150!
